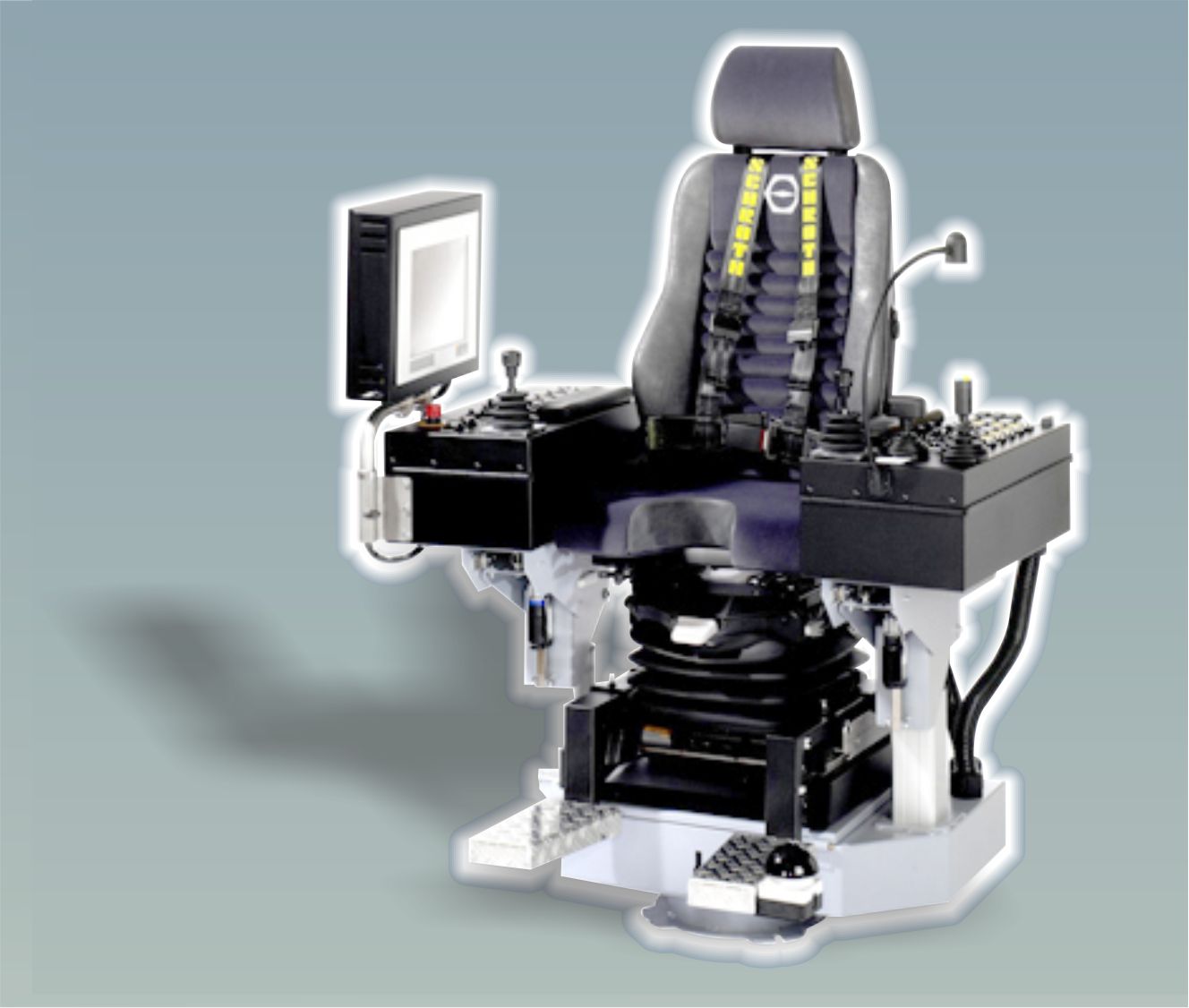

FSMMD ergonomically designed Control Station

The Control Station offers superior comfort for the operator. It offers various adjustments and optional memory control to make operators work easier and tireless.

Standard motorized adjustments: Enclosure up-down, forward-backward, Tilt adjustments.

Seat adjustments: forward-backward, up-down and tilt.
Manually adjusted foot rest: forward-backward.
Headrest: height and tilting adjustable.
Adjustable back rest 10° - 0 - 80°
Adjustable seat tilt 3° - 11°

Comfort Seat with long well-formed backrest and reinforced side contour for optimal seating position as well as pneumatic suspension with automatic weight
and seat height adjustment.

The top lid with devices can be lifted and locked into position for easy wiring or maintenance.

The base is constructed of heavy duty steel with a collapsible cover under the seat for easy access
to terminals.

Smooth rotary motion, stepless lock via friction brake or lock by notches in the range from 180° right to 90° left.

Powder Coated metal parts RAL7032 Pebble Gray for extended durability.

(905) 361-1515

Control stataion BG-top
main menu

e-mail: sales@wavetechcontrols.ca



errow - right-124
FSMMD -large
PDFs
errow - right-124
errow - right-124
errow - right-124
errow - right-124
errow - right-124
products
errow - right-124

options

1   Standard Enclosures 200 mm x 500 mm x 200 mm
1   Standard Enclosures 230 mm x 550 mm x 240 mm
2   Special size
3   Motorized Rotation
4   Setup Memory Contro
5   V- Cut seat
6   Wiring to Terminal Strip
7   Monitor holder
8   Special Paint


errow - right-124
errow - right-124

FSMMD

SV1C-200
SV1C-230
SV1C-XXX
M
MC
V
W
MH
SP
